T100 Display

General

CPU: ARM Cortex-A7，1.5GHz

RAM: 2GB Storage：16GB

Micro SD: Extensible：16GB

Display Parameters

10-inch Capacitive Touch Screen

Resolution: 1024 x 600

Brightness: 800nits nits (standard), visible under the strong light

Communications Parameters

Build-in 4G module

2.4G WiFi,IEEE802.11 g/b/n ,BT4.0,BLE

Physical Parameter

Size: 277x 180 x 35mm

Weight: 1.4 KG

Protection Grade: IP65

Electrical Parameters

Power input: 9-36 VDC, wide voltage power supply input

Power: < 18 w

Build-in Battery: 2600mAh, NTC protection

Build-in Spaker: 2W

Environmental Index

Operating Temperature: - 10 ℃ to 70 ℃

Storage Temperature: - 30 ℃ to 80 ℃

Relative Humidity: 0% to 90%, @ 40 ℃ (no condensation)

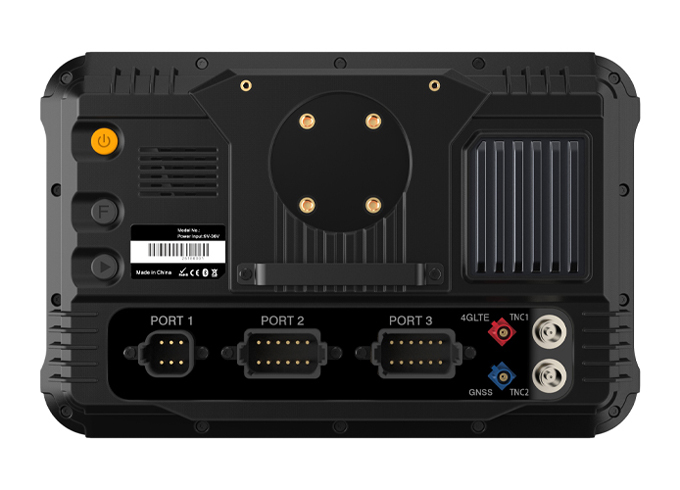

IO Interface

4 x 12 core connecting ports

Include 2 x serial port, 1 x 485 port, 2 x CAN, 4 x CVBS video port, 1 x power supply, 1 x power output, 2 path input GPIO, 1 path intput GPIO,1 x Network port,1 x USB port, 1 x Audio port

Accessories

Data Cable

Vehicle Fixing Bracket
